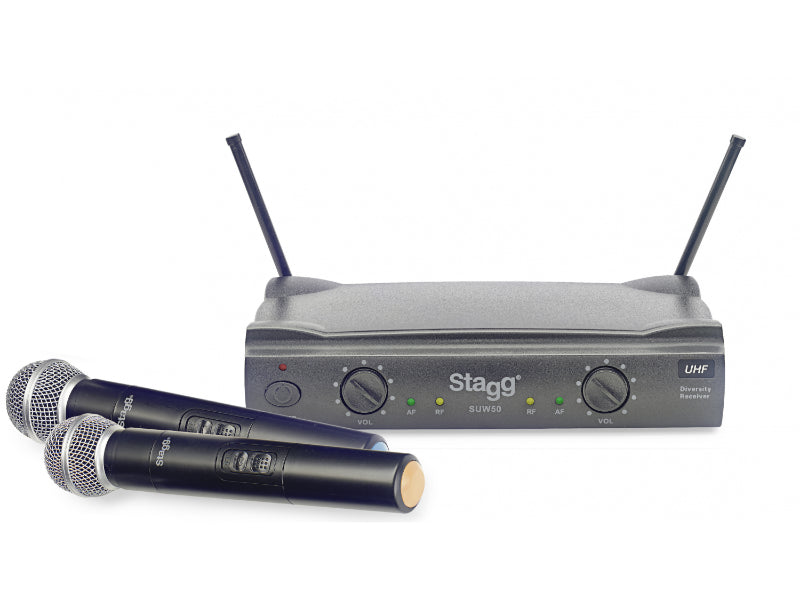

Wireless Microphone set with 2 Handheld Microphones
Features :

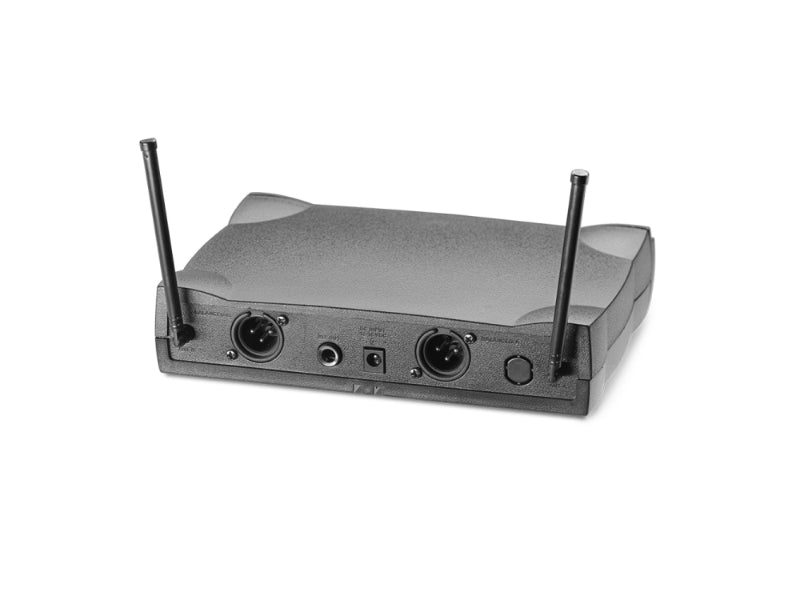

Receiver :
- Frequency Range 863.8-864.5MHz
- Frequency Oscillation Mode PLL UHF Synthesized
- Frequency space 1KHz
- Band width 2MHz
- Frequency Response 50Hz-15KHz
- Working Distance 200 feet
- Frequency stability ±0.005% (-10°C - +50°C)
- Image Interference Ratio >80dB
- S/N ratio >90dB
- Sensitivity -105dB (12dB S/N AD)
- T.H.D <0.8%@1KHz
- Modulation Mode FM
- Power Supply DC 12-18V 350mA
- Power Consumption 4W
- Audio output unbalanced 6.3mm phone jack 550mV ±35KHz deviation
- Balance output 250mV at ±35KHz deviation
Handheld Transmitter :
- Frequency Range 863-865MHz
- Frequency Response 50Hz-15KHz
- Channels 16
- Bandwidth 2MHz
- Frequency Space 1KHz
- Spurious Emissions <-60dBc
- RF Output Power 10mW
- Battery AA 1.5V *2
- Power Consumption <110mA@3V
- Battery Life 6-8 Hours
Body pack Transmitter :
- Frequency Range 863-865MHz
- Frequency Response 50Hz-15KHz
- Channels 16CH
- Bandwidth 2MHz
- Frequency Space 1KHz
- Spurious Emissions <-60dBc
- RF Output Power 10mW
- Battery AA 1.5V *2
- Power Consumption <110mA @ 3V
- Battery Life 6-8 Hours
